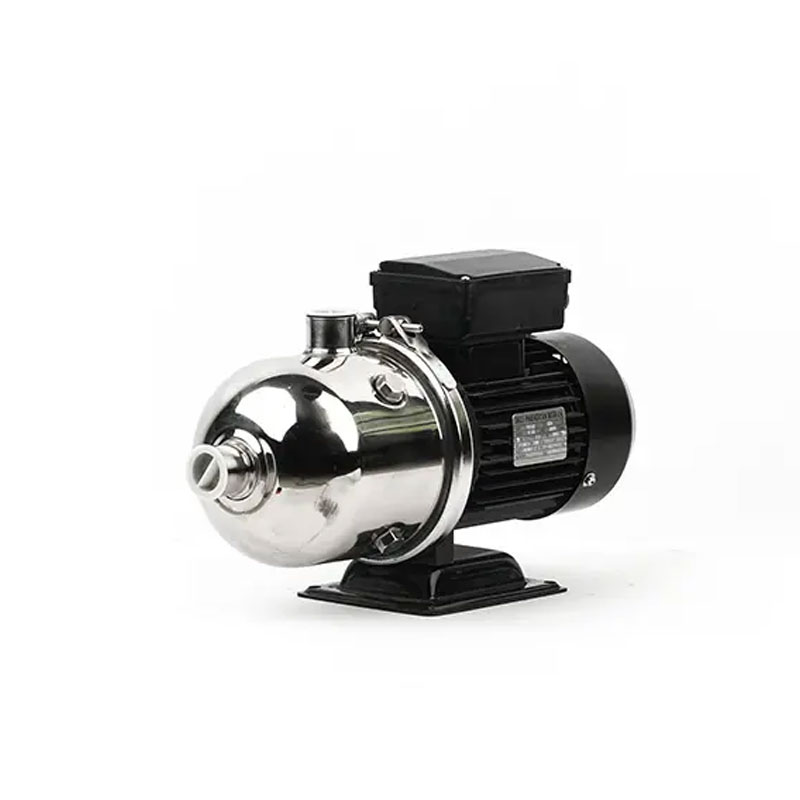

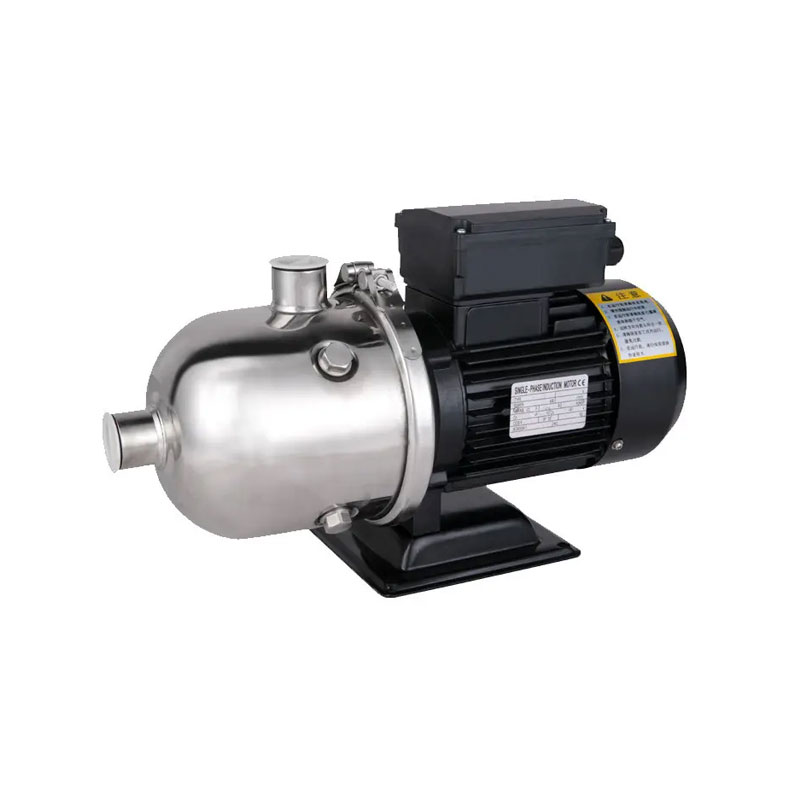

Horizontal Multistage Centrifugal Pump CHL

Shanghai Crowns Pump Manufacturing Co., Ltd., a leader in innovative pump solutions, excels in designing, producing, and selling a diverse range of high-performance water pumps—including our CHL Horizontal Multistage Centrifugal Pump CHL series, engineered to meet rigorous ISO standards for unmatched performance and reliability. Built with robust horizontal multistage architecture to optimize hydraulic efficiency and pressure consistency across extensive networks, the CHL series undergoes stringent testing against ISO 9001:2015 and ISO 2548 benchmarks, ensuring durability and minimal maintenance while featuring energy-efficient IE3 motors that reduce operational costs by up to 18% compared to traditional models. Ideal for high-rise water supply, industrial process circulation, and municipal treatment systems, this series combines a compact footprint with dependable operation, making it the go-to choice for commercial and industrial environments requiring efficient, compliant, and sustainable water pump solutions.

Send Inquiry

Product Description

Shanghai Crowns Pump Manufacturing Co., Ltd. offers top-quality water pumps. Horizontal Multistage Centrifugal Pump CHL constant pressure frequency conversion water supply system is composed of newest great performance PID frequency conversion controlling cabinet and more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand. The pressure of water supply net can be kept constant. The whole water supply system can be at best effective, energy saving, perfect status. There are two ways of water supply, they are frequency convention water supply and pressure water supply. Frequency water supply is automatically adjust the rotation speed of one pump or run/stop one or more pumps, which is the best water supply way to keep the water supply net to be stable. It is easy to use.

● Convey liquid: cold, warm, clean, non-flammable, non-explosive liquid, not consisted of solid grain or fiber.
● Medium temperature: Normal temperature type -15°C~+70°C; Hot water type + 70°C~+ 120°C;
● Ambient environment: No drop, vapor, no floating dust or metal grain. No sunshine, hot temperature, heavy dust. No corrosive, non-flammable gas or liquid.
● The equipment should be placed in no vibration place and in the place where it is easy to check.
● Ambient temperature: Max +45 °C, ventilated

Trust Crowns Pump for reliable water pump solutions.

Work Conditions

1. Inlet pressure ≤1.0Mpa, or pump system maximum work pressure ≤1.6Mpa, pump inlet pressure + pump head≤1.6Mpa, pump static pressure test pressure: 2.5Mpa. The pump system work pressure is greater than 1.6Mpa, you shall specify in the order.
2. Ambient temperature<40ºC, relative humidity<95%.
3. The solid particle volume of the media shall not exceed 0.1%, particle diameter <0.2mm.

Main Specification

●Performance table

Model	Driving motor		Q(m3/h	0.5	1.0	1.5	2.0	2.5	3.0	3.5
CHL	(kW)	(hp)	Q(m3/h	0.5	1.0	1.5	2.0	2.5	3.0	3.5
2-20	0.37	0.5		19	18	16.5	15	13	10	7.5
2-30	0.55	0.5		28	26.5	24.5	22	19	15.5	12
2-40	0.55	0.75	H (m)	36	34.5	33	29	25	20.5	16
2-50	0.55	0.75		45.5	43	40	36	31.5	26.5	20.5
2-60	0.75	1		53.5	51	48	44	39	32	24

●Installation sketch

Installation sketch

●Size and weight

Motor	Model	Size(mm)						Weight (kg)
Motor	CHL	L1	L2	L3	D	H	K	Weight (kg)
Three-phase single-phase	2-20	395	165	125	140	215/249	/96	13
	2-30	395	165	125	140	215/249	/96	13
	2-40	395	165	125	140	215/249	/96	13
	2-50	395	165	125	140	245/249	/96	13
	2-60	415	165	125	157	230/265	/100	13

Feature And Application

Feature

1. Solve the low pressure problem: Use the constant pressure, frequency conversion water supply system to keep the pressure stable of the whole building.
2. To avoid the pollution of the tank on the top of the roof. It takes place the traditional roof tank water supply way, erase the source of water pollution.

Application

Residential water supply: High building, residential area, villa, etc.
Public places: Hospital, university, gymnasium, golf course, airport, etc.
Commercial building: Hotel, office building, department store, large-scale sauna center.
Irrigation: Park, playing round, garden, farm, etc.
Manufacturing industry: Manufacturing, lavation equipment, food industry, factory, etc. Horizontal Multistage Centrifugal Pump CHDF
