Mechanical Diaphragm Metering Pump

Produced by Shanghai Crowns Pump Manufacturing Co., Ltd. with over 20 years of manufacturing experience, the mechanical diaphragm metering pump is a type of diaphragm pump where the flexural deformation of the diaphragm is directly driven by mechanical force. It is generally suitable for conveying liquids without solid particles, with a temperature range of -15℃~85℃ and a viscosity range of 0.3mm²/s~2000mm²/s. The flow rate can be steplessly adjusted within the range of 0-100%. The product features static seal without leakage at the hydraulic end, simple structure, low maintenance cost, and excellent cost performance. It is applicable to industries such as environmental protection, water treatment, pharmaceuticals, papermaking, and new materials, and can be used for conveying slurries and hazardous chemicals.

Send Inquiry

Product Description

Product Functions

• The pump's flow control modes include manual control and automatic control, and the automatic control can be realized through frequency conversion.

• Parameter range: flow rate is 0.47～6000L/h, maximum working pressure is optionally up to 1.2MPa; the flow stability accuracy can be controlled within 1%.

• Suction lift capacity: ≤3m (water column)

• The product has no safety relief device. When forming a system, a safety valve should be installed in the outlet pipeline of the pump to improve operational safety.

• When conveying flammable, explosive, strongly corrosive, toxic and other hazardous chemicals, to prevent accidents caused by diaphragm rupture, a hydraulic end structure with double diaphragms and a diaphragm rupture alarm device can be selected.

Features

• The flow rate can be adjusted arbitrarily or output quantitatively whether the pump is running or stopped.

• High cost performance, widely applicable to the water treatment industry with low pressure requirements.

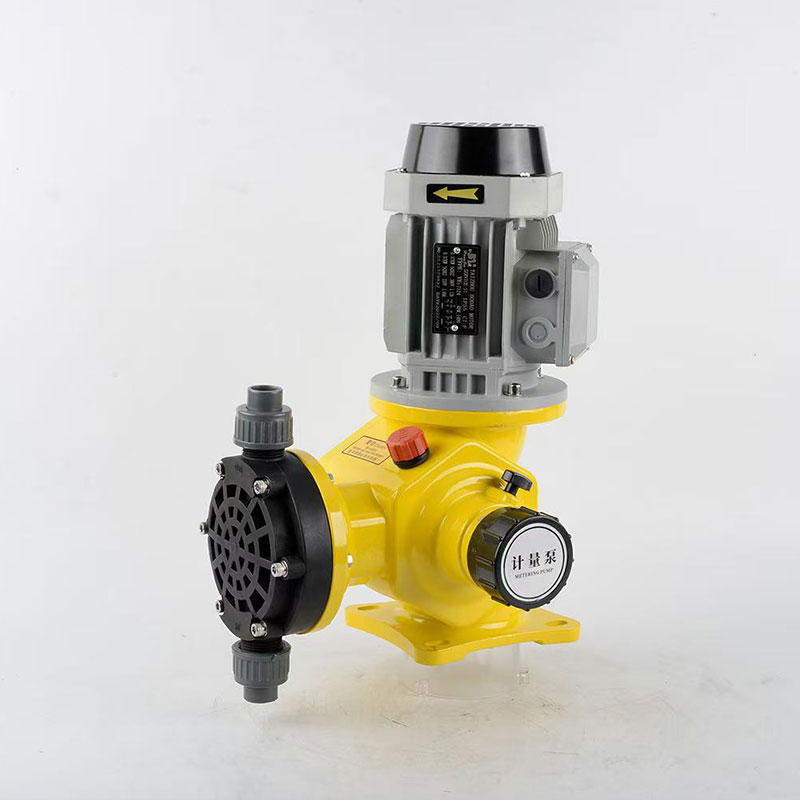

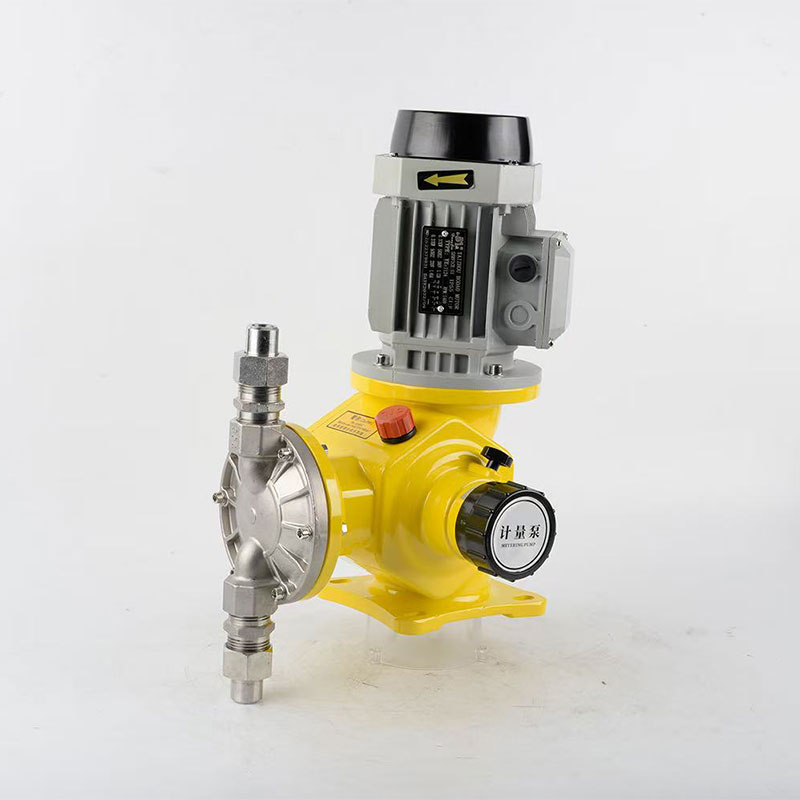

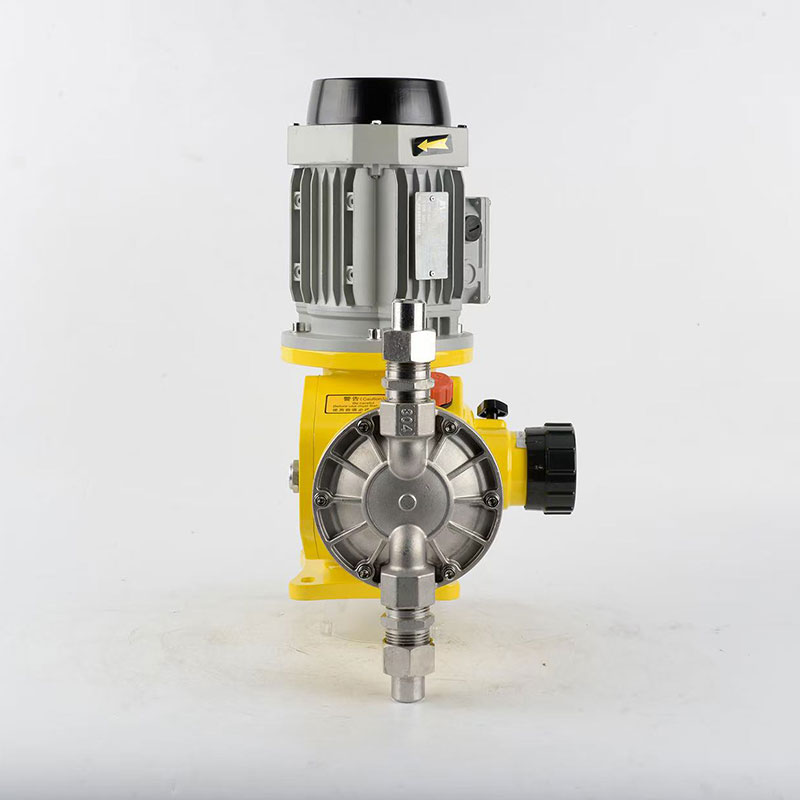

• Multiple material options for pump heads: PVC, PTFE, 304 stainless steel, 316L stainless steel.

• Adopting an eccentric mechanism, it achieves complete leakage-free performance overall and can be installed on chemical tanks or pipelines.

• Cast aluminum shell, featuring high heat dissipation performance, light overall weight, suitable for various acid and alkali chemical liquids, non-toxic and odorless.

• Using high-quality PTFE and rubber composite diaphragms, which have strong corrosion resistance and greatly extend the service life of the diaphragms.

• The diaphragm of the metering pump is made by pressing a multi-layer composite structure: the first layer is a super-tough Teflon acid-resistant film, the second layer is EPDM elastic rubber, the third layer is a 3mm thick SUS304 supporting iron core, the fourth layer is reinforced with enhanced nylon fiber, and the fifth layer is fully covered with EPDM elastic rubber. This structure can effectively extend the service life of the diaphragm.

Mechanical Diaphragm Metering Pump
