Main Types and Advantages of Sewage Pumps

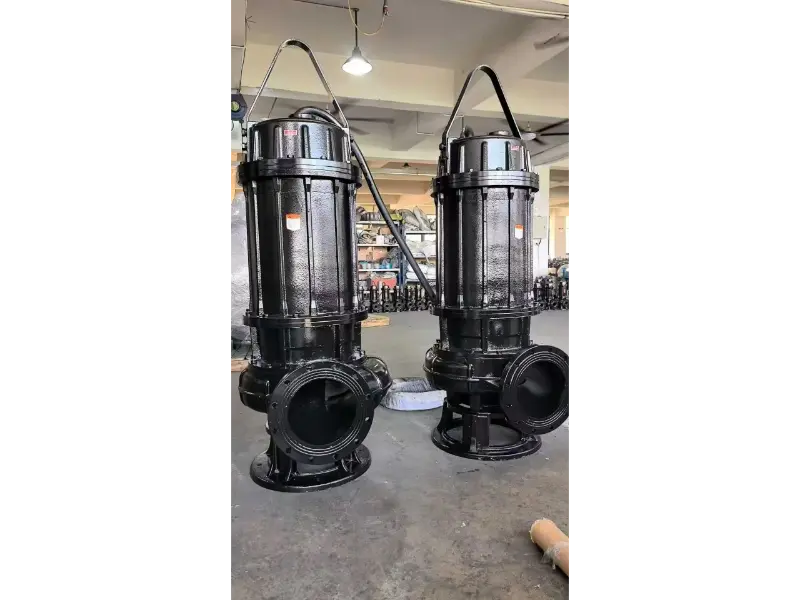

Sewage pumps are integrated pump-motor units designed to operate submerged in liquid. Compared to general horizontal pumps or vertical sewage pumps, they occupy less space, are easier to install, can run continuously for long periods, and have lighter parts, resulting in a much longer service life. Issues such as cavitation damage and the need for priming are eliminated. They operate with low vibration and noise, have low temperature rise, and cause no pollution.
I. Advantages of Submersible Sewage Pumps
(1) Low vibration, slow motor temperature rise, and environmentally friendly .
(2) Long continuous operation time: Because the pump and motor are coaxial, the shaft is short, and rotating parts are lightweight, the load on bearings is relatively small, leading to a much longer lifespan than conventional sewage pumps.
(3) Compact structure: Being submersible, they can be installed directly in the sump, eliminating the need for a dedicated pump room, thus saving significant land and construction costs.
(4) No issues with cavitation damage or priming, Which offers great convenience to operators.
(5) Easy installation and maintenance: Small submersible sewage pumps can be installed freely, while larger models are usually equipped with automatic coupling devices for easy installation and maintenance.
The application range of submersible sewage pumps is increasingly broad, suitable for various industrial wastewater, domestic sewage, construction site drainage, etc. Consequently, they are gaining more attention from manufacturers and are becoming a leading product in the sewage pump industry.
II. Advantages of Automatic Agitator Sewage Pumps
(1) During operation, they automatically agitate sediment at the pool bottom, thoroughly preventing sludge accumulation and eliminating the need for manual cleaning.
(2) Unique impeller design capable of chopping and shredding fibrous materials and debris.
(3) Equipped with an external circulation cooling system, allowing operation at low liquid levels, reducing motor start frequency, and extending motor life.
(4) Recommended product in national standard drawing collections.
Automatic agitator sewage pumps are based on standard sewage pumps but include an automatic stirring device. This device rotates with the motor shaft, generating strong agitation to stir settled solids in the sump into suspension, which is then pumped out.
III. Advantages of Vertical Non-Clog Sewage Pumps
(1) Safe, reliable, and reduced maintenance: A balanced rotor assembly and reasonable bearing arrangement effectively balance radial and axial forces, ensuring long-term stable operation with low vibration and noise.
(2) Strong non-clogging capability: Smooth, large flow channels and special anti-clogging impeller design ensure high-efficiency, clog-free operation.
(3) Double seal, double protection: Two mechanical seals configured in series provide genuine dual protection for motor safety.
Working Conditions for LW Vertical Sewage Pumps
Flow rate: 2–1500 m³/h
Head range: 3–45 m
Rated speed (n): 970–2900 rpm
Medium temperature: -15°C to +60°C
Medium density: ≤1.3×10³ kg/m³
Medium pH: 5–9
Maximum system working pressure: ≤0.6 MPa
GW Pipeline Sewage Pumps
GW pipeline sewage pumps are high-efficiency, energy-saving pumps developed using advanced domestic and international technology. They are widely used for booster water supply in high-rise buildings and long-distance pipelines, or for conveying other media. They can also handle sewage containing particles and fibers and are suitable as drainage pumps, filter flushing pumps, and condenser circulation pumps.
IV. Advantages of Self-Priming Sewage Pumps
(1) Strong sewage handling capability: Special anti-clogging impeller design ensures high efficiency and clog-free operation.
(2) High efficiency and energy saving: Utilizing an excellent hydraulic model, efficiency is 3–5% higher than general self-priming pumps.
(3) Excellent self-priming performance: Self-priming height is 1 meter higher than general self-priming pumps, with shorter priming time.
(4) Mechanical seal uses a new friction pair and operates long-term within an oil chamber.
(5) Compact overall structure, small size, low noise, significant energy-saving effect, easy maintenance, and convenient parts replacement for users.
(6) The automatic control cabinet can start and stop the pump based on liquid level changes, requiring no dedicated operator, making it extremely convenient.
(7) Installation methods can be configured according to user needs, greatly facilitating installation and maintenance without requiring personnel to enter the sewage pit.
(8) When equipped with a weatherproof motor, no pump house is needed, allowing direct outdoor installation and saving costs.
Self-priming non-clog sewage pumps are suitable for industries including chemical, petroleum, pharmaceutical, mining, paper, fiber, pulp, textile, food, power plants, municipal sewage engineering, public facility drainage, and pond aquaculture.
